EC風機
態度決定成敗

UFT200BMB Series

產品簡介：UFT200BMB Series
產品詳情：

構(gòu )架材質: 鋁壓鑄
扇葉材質: 工業塑膠或鋼
軸承種類: 鋼珠軸承
馬達種類: 直流無刷馬達
接線(xiàn )方式: 出線(xiàn )式或端子式
保護方式: 阻抗保護或溫度保護或電子式保護
耐電壓試驗: AC1500V (50/60Hz) one minute
絕緣電阻: Above 10MΩ, DC500V
工作溫度: `-40℃~+60℃
存儲溫度: `-40℃~+80℃
壽命: 鋼珠軸承:50,000小時以上(40°C以下)
安規認證: CUL, CE, TUV, either UL or ETL.
型號介紹. UF 220 A P A 11 H1 C 2 A
福佑品牌 Blade Diameter風輪直徑 Sort Fan風扇類型 Sort of Blade風輪類型 Air Check空氣流動方向 Voltage工作電壓 Speed轉速 Sort Motor電機類型 Poles of Motor電機極數 Special Requirement特殊定製
UF FULLTECH T EC Motor A Centrifugal Fan A Aluminum Centrifugal Fan 11 115V H1 High A 3 Phases 2 2P Axial Fan
133(72) 133mm(72mm Thick) B Axial Fan P Plastic A Backward Curve, Single Air Intake 23 230V M1 Medium S Shaded Pole 4 4P A Standard with Frame
133(91) 133mm(91mm Thick) D Blower Fan M Welded Steel B Forward Cure, Single Air Intake 38 380V L1 Low C Capacitor Run Motor 6 6P E Without Frame
175 175mm N Pressed Steel C Forward Cure, Dual Air Intake 0A 115-230V D Single Phase EC Motor B With Low Guard/No Frame
180 180mm Axial Fan C With High Guard/No Frame
180(55) 180mm(55mm Thick) A Air Discharge Out of Rotor Side D With Guard&Duct
190 190mm B Air Discharge Opposite Rotor Side Centrifugal Fan
220 220mm Blower Fan A Standard
225(99) 225mm(99mm Thick) B Forward Single Air Inlet F With Mounting Disk
225(85) 225mm(85mm Thick) C Forward Dual Air Inlet
225(69) 225mm(69mm Thick)
250 250mm
318 318mm
300 300mm
360 360mm
400 400mm
60B ø55×25mm
12A ø112×38mm
15P ø145×51mm
25G ø221×89mm
200 ø200mm

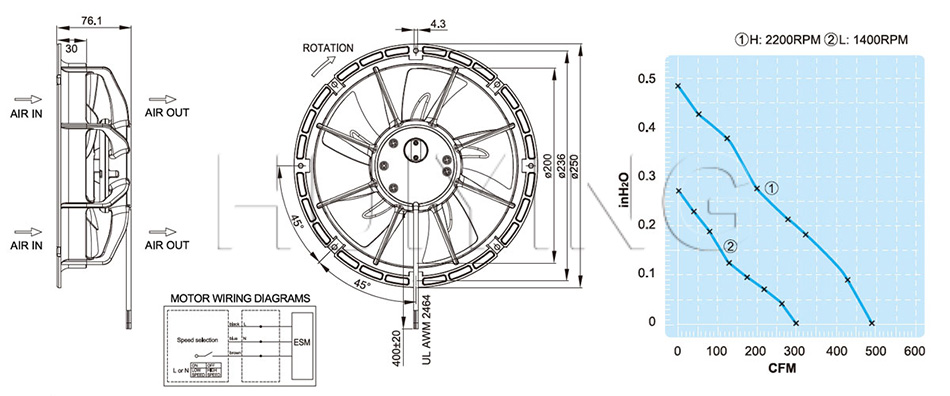

Model UFT200BMB11H1D4A UFT200BMB23H1D4A
Rated Voltage 115 V 230 V
Frequency 50/60/50/60 Hz 50/60/50/60 Hz
Input Power 26/8.1 W 27.0/8.5 W
Rated Current 0.40/0.13 A 0.24/0.08 A
Locked Current 0.1/0.1 A 0.1/0.1 A
Speed 2200/1400 RPM 2200/1400 RPM
Maximum Air Flow 13.0/8.2 m3/min. 13.0/8.2 m3/min.
Maximum Air Flow 460/290 CFM 460/290 CFM
Maximum Pressure 11.7/7.1 mmH2O 11.7/7.1 mmH2O
Maximum Pressure 0.46/0.28 InchH2O 0.46/0.28 InchH2O
Noise 55/44 dB 55/44 dB
Weights 1 kg 1 kg

　


　
