UF225(99)APA
產品簡介：產品詳情：
構(gòu )架材質:
鋁壓鑄
扇葉材質:
工業塑膠或鋼
軸承種類:
鋼珠軸承
馬達種類:
蔽極式馬達或電容啟動式馬達
接線(xiàn )方式:
出線(xiàn )式或端子式
保護方式:
阻抗保護或溫度保護或電子式保護
耐電壓試驗:
AC1500V (50/60Hz) one minute
絕緣電阻:
Above 10MΩ, DC500V
工作溫度:
`-40℃~+60℃
存儲溫度:
`-40℃~+80℃
壽命:
鋼珠軸承:50,000小時以上(40°C以下)
安規認證:
CUL, CE, TUV, either UL or ETL.
型號介紹.
UF
220
A
P
A
11
H1
C
2
A
福佑品牌
Blade Diameter風輪直徑
Sort Fan風扇類型
Sort of Blade風輪類型
Air Check空氣流動方向
Voltage工作電壓
Speed轉速
Sort Motor電機類型
Poles of Motor電機極數
Special Requirement特殊定製
UF
FULLTECH
T
EC Motor
A
Centrifugal Fan
A
Aluminum
Centrifugal Fan
11
115V
H1
High
A
3 Phases
2
2P
Axial Fan
133(72)
133mm(72mm Thick)
B
Axial Fan
P
Plastic
A
Backward Curve, Single Air Intake
23
230V
M1
Medium
S
Shaded Pole
4
4P
A
Standard with Frame
133(91)
133mm(91mm Thick)
D
Blower Fan
M
Welded Steel
B
Forward Cure, Single Air Intake
38
380V
L1
Low
C
Capacitor Run Motor
6
6P
E
Without Frame
175
175mm
N
Pressed Steel
C
Forward Cure, Dual Air Intake
0A
115-230V
D
Single Phase EC Motor
B
With Low Guard/No Frame
180
180mm
Axial Fan
C
With High Guard/No Frame
180(55)
180mm(55mm Thick)
A
Air Discharge Out of Rotor Side
D
With Guard&Duct
190
190mm
B
Air Discharge Opposite Rotor Side
Centrifugal Fan
220
220mm
Blower Fan
A
Standard
225(99)
225mm(99mm Thick)
B
Forward Single Air Inlet
F
With Mounting Disk
225(85)
225mm(85mm Thick)
C
Forward Dual Air Inlet
225(69)
225mm(69mm Thick)
250
250mm
318
318mm
300
300mm
360
360mm
400
400mm
60B
ø55×25mm
12A
ø112×38mm
15P
ø145×51mm
25G
ø221×89mm
200
ø200mm

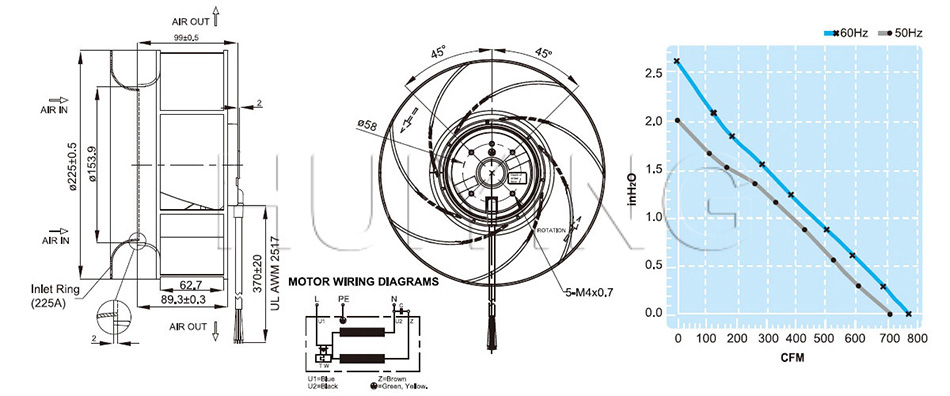

Model
UF225(99)APA11H1C2A
UF225(99)APA23H1C2A
Rated Voltage
115 V
230 V
Frequency
50/60 Hz
50/60 Hz
Input Power
128/160 W
126/157 W
Rated Current
1.16/1.41 A
0.57/0.7 A
Locked Current
2.22/2.3 A
1.14/1.15 A
Speed
2650/2950 RPM
2650/2950 RPM
Maximum Air Flow
20/22 m3/min.
20/22 m3/min.
Maximum Air Flow
700/770 CFM
700/770 CFM
Maximum Pressure
51/66 mmH2O
51/66 mmH2O
Maximum Pressure
2/2.6 InchH2O
2/2.6 InchH2O
Noise
69/71 dB
69/71 dB
Weights
2.3 kg
2.3 kg
